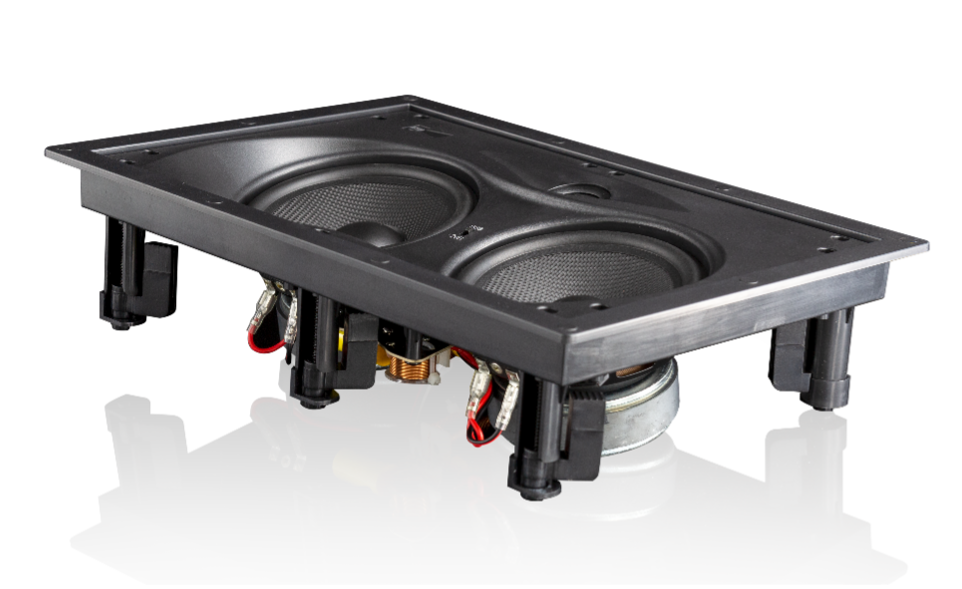

RSL Speakers Announce the Release of the W25E Reference In-wall L/C/R/SURROUND/ATMOS™ Speaker

Effective Friday, Nov. 11, 2022, RSL Speaker Systems will begin shipping the W25E Reference In-Wall loudspeaker. This new speaker builds upon RSL's award-winning heritage of factory-direct loudspeakers. The new W25E is a versatile loudspeaker suited for virtually any audio environment. The unique angled asymmetric design finally allows an in-wall speaker to truly have positional optimization. The mirrored design is keyed for specific “Left”, “Center” OR “Right” speaker placement providing ideal directionality to the MLP (Main Listening Position). Historically, this has been a major performance compromise for traditional in-wall speakers for use in home theater applications where the sound is almost always “off-axis” and not ideal. Whether it is an L/C/R application, Rear or Side Surround channels, ATMOS™ overhead, or just complementary in-wall speakers for anywhere in your home, the new W25E directs the sound where needed.

The W25E features the following attributes:

• Universal L/C/R/Surround channel optimization
• Laterally-aligned asymmetrical mirrored baffling
• Adjustable tweeter swivel alignment and attenuation
• Mineral-filled woven textured poly-cone with butyl-rubber surround
• Audiophile-grade crossover components
• Edgeless magnetically attached grille design
• Cut-out template and paint shield included
• Design allows for both Horizontal or Vertical mounting within standard 2×4 construction

The new edgeless, rectangular design follows RSL’s C34EMKII in-ceiling model with a matching mesh grille and finish to provide a consistent family of features, functions, and style. This allows for RSL’s signature performance and value to be the perfect choice for both pre and post-construction applications with a seamless and consistent aesthetic.

Specifications for the new W25E are as follows:

• Woofer: Dual 5 ¼” Woofers with High-Energy Ferrite Magnets, Woven textured Mineral-Filled Poly-Cones, Butyl Rubber Surrounds, and High-Strength Cold-Rolled Stamped Steel Frames.
• Tweeter: 22mm (7/8”) Treated-Fabric Exposed Dome Swivel Tweeter with Neodymium Magnet
• Frequency Response: 48Hz-20,000 Hz ± 3dB
• Recommended Impedance setting for amplifiers: 6 or 8 ohms
• Sensitivity: 91dB SPL
• Recommended Power: 35–175 Watts
• Crossover Frequency: 3,200Hz
• Crossover Slope: Asymmetric 12/6dB per octave
• Crossover Parts: Proprietary, Low Insertion-Loss Lami-Core and Air-Core Inductors, RSL Poly Capacitors, Non-Inductive Resistors, Gold-Plated Spring-Loaded Binding Posts, FR-2 PCB
• Tuning Method: Infinite Baffle
• System Resonance: Application Dependent
• Weight: 7.6 lbs.
• Shipping Weight: 9.2 lbs.
• Dimensions: (Overall): Depth  4”, Width  9⅞”, Height 14”.
• Dimensions: (Mounting): Depth 3¾” , Width 8⅞”, Height 13”

To learn more info about the new W25E Reference In-Wall Loudspeaker, please visit: https://rslspeakers.com/w25e-in-wall-speaker/
