How to Choose the SATA Cable? The Ultimate Guide for IT Professionals, System Builders, and OEMs (Source: Bespokecable)

In the intricate ecosystem of modern computing hardware, where every millisecond of latency and every byte of throughput count, the foundational components that ensure seamless operation are often overlooked. Among these, the Serial ATA (SATA) cable stands as a quintessential example. It is the critical, yet humble, vascular system that carries the lifeblood of your system—its data—between storage devices and the motherboard. Whether you are assembling a high-frequency trading workstation, deploying a rack of servers for a cloud service, or integrating storage into an industrial automation system, the choice of SATA cable is a decisive factor that influences system stability, performance ceiling, and long-term reliability. A poorly specified or substandard cable can manifest as a myriad of elusive problems: unexplained drive dropouts, corrupted files, boot failures, or a persistent failure to achieve the advertised read/write speeds of a premium SSD. These issues not only cause operational headaches but can lead to significant financial loss and reputational damage in commercial and industrial settings.

As a leading SATA cable manufacturer​ and direct factory​ in China, Bespokecable understands these stakes intimately. Having supplied mission-critical connectivity solutions for over 2,000 B2B projects worldwide, from data centers to embedded medical devices, we have witnessed the direct correlation between cable quality and system integrity. This comprehensive guide is your definitive resource. Moving beyond basic compatibility, we will delve into the engineering specifications, application-specific considerations, and strategic sourcing insights that empower IT managers, system integrators, and procurement specialists to make an informed purchase. This knowledge is vital whether you are selecting a single SATA Cable for an SSD​ in a gaming PC or planning a bulk​ procurement for a global server rollout, ensuring that your storage infrastructure performs flawlessly from day one and for years to come.

Part 1: Demystifying the SATA Universe – Beyond the Basic Cable

The term “SATA cable” is a broad categorization that encompasses several distinct products, each serving a unique purpose. Understanding this ecosystem is the first step toward a correct selection.

1. The Data Pathway: SATA Data CablesThis is the component most commonly referred to. The SATA Data Cable, with its distinctive 7-pin connector, is responsible exclusively for transmitting data signals. Its performance is governed by the SATA generation.
   • Generational Leap:​ The standard today is the SATA 3 Cable, also known as SATA III​ or, more descriptively, the SATA 6Gb/s Cable. This designation confirms its ability to handle the 6-gigabit-per-second bandwidth required by modern SATA Solid State Drives. While backward-compatible (a SATA III cable will work with a SATA II HDD), using an older, unshielded SATA Cord with a new SSD will act as a severe bottleneck, preventing you from realizing your hardware investment. For any performance-sensitive build, insisting on a certified SATA 6Gb/s Cable​ is non-negotiable.

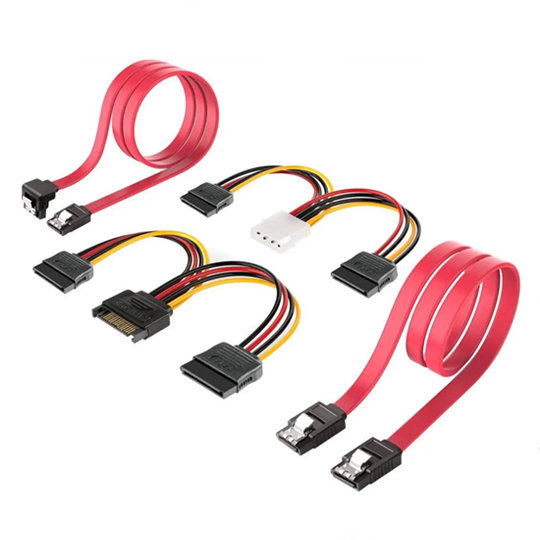

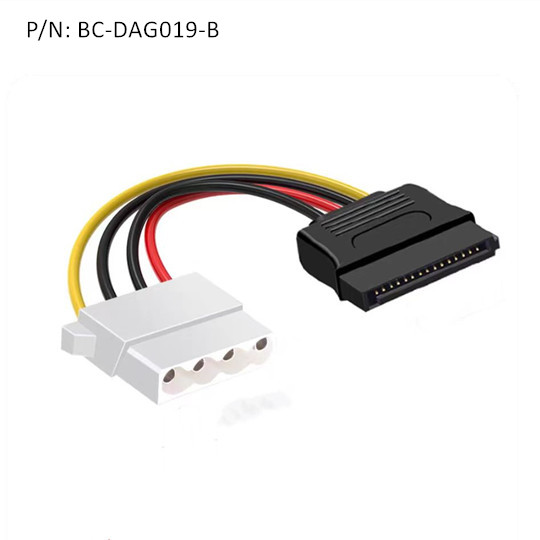

2. The Power Delivery Network: SATA Power CablesData transmission requires energy. This is provided by the SATA Power Cable, identifiable by its wider 15-pin connector. It delivers the necessary 3.3V, 5V, and 12V rails from the Power Supply Unit (PSU) directly to the drive. A drive requires both a data and a power connection to operate.​ In legacy system upgrades or specialized applications, adapters like the Molex to SATA​ power cable are used to convert older 4-pin peripheral connectors, but these must be sourced from reputable suppliers to avoid the fire risks associated with poorly molded adapters.
3. The Adapter Ecosystem: Solving Real-World Connectivity ChallengesReal-world installations are rarely textbook. A comprehensive supplier provides a suite of adapters to bridge gaps in compatibility and form factor.
   • Form Factor Adaptation: The Slimline SATA Adapter and Micro SATA Adapter are essential for connecting drives in compact laptops, ultra-slim optical drives, and specific proprietary enclosures where standard connectors simply won’t fit.

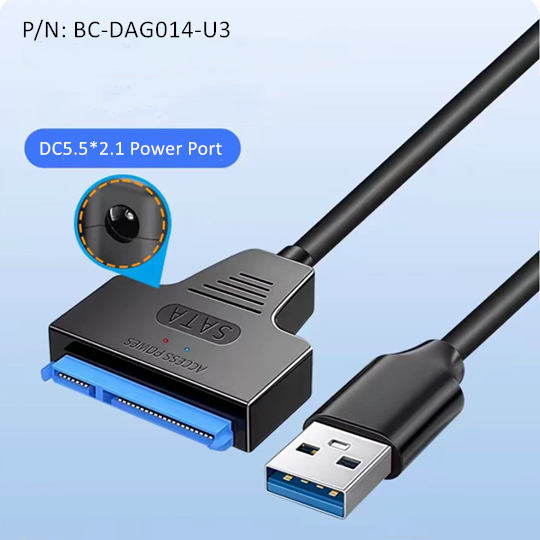

   • Interface Conversion:​ For data recovery, external access, or temporary expansion, a USB to SATA Adapter​ is an indispensable tool, bridging the internal SATA interface to a universal external port.
   • Gender Changers and Extenders: A SATA 22-Pin Male-to-Female Adapter or a generic SATA Adapter can resolve physical port conflicts. For unique chassis layouts where a drive is just out of reach, an SATA Extension Cable​ can provide a few extra centimeters of length, though it is crucial to remember that the total SATA channel length must not exceed 1 meter to maintain signal integrity.
   • Direct Connections:​ A simple SATA to SATA Cable​ or a SATA Hard Drive Cable​ typically refers to a standard data cable linking two SATA interfaces, the core of any storage connection.

Part 2: The Anatomy of a High-Quality SATA Data Cable – Specifications That Dictate Performance

Assuming you need a standard data cable, the following features separate a professional-grade component from a generic commodity.

1. Connector Geometry: The Critical Factor for Physical IntegrationThe shape of the connector is often the difference between a clean, successful build and a frustrating struggle with clearance and strain.
   • Straight Connectors:​ Offer maximum compatibility and are the default choice for spacious cases.

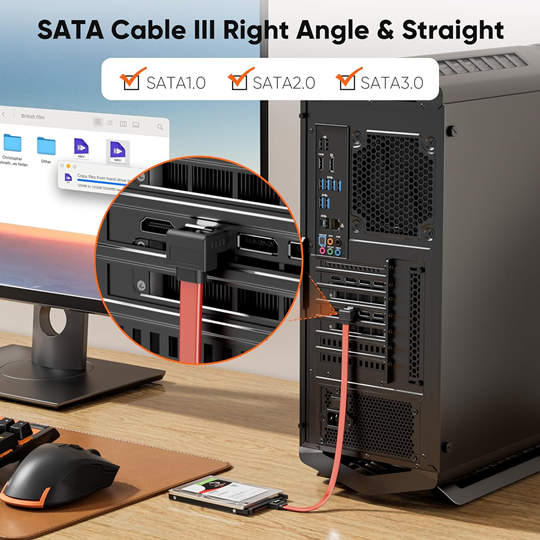

   • Right Angle SATA Cable:​ This is arguably the most important innovation for modern system building. Available in multiple orientations (left, right, up, down), a right-angle connector allows the cable to lie flush against the drive or motherboard. This eliminates harmful lateral strain on the port, saves valuable space in compact cases and multi-drive bays, and dramatically improves airflow—a critical factor for cooling NVMe drives and GPUs adjacent to SATA ports. Specifying the correct angle is essential for a clean Laptop SATA Cable​ installation or for SATA cables for SSD​ placements near large CPU coolers.
   • Dual-Angle and Specialty Cables:​ For extreme cable management in server racks or complex desktop loops, cables with specific angles on both ends (e.g., a right-angle on the drive end and a straight on the motherboard end) provide optimal routing.
2. Construction Quality: Materials That Ensure Signal Integrity and Durability
   • Shielding:​ Inside a computer case, components generate significant electromagnetic interference (EMI). A quality SATA 3 Cable​ employs multi-layer shielding, typically a combination of aluminum foil and a woven copper braid, to create a Faraday cage around the data pairs. This prevents signal crosstalk and external noise from corrupting the high-speed 6Gbps data stream, ensuring error-free transfers.
   • Connector Contacts:​ Gold-plated contacts​ are standard on quality cables for good reason. Gold offers superior electrical conductivity compared to nickel or tin, and it is highly resistant to oxidation and corrosion. This ensures a stable, low-resistance connection over thousands of plug/unplug cycles, which is vital in test environments or hot-swap server bays.

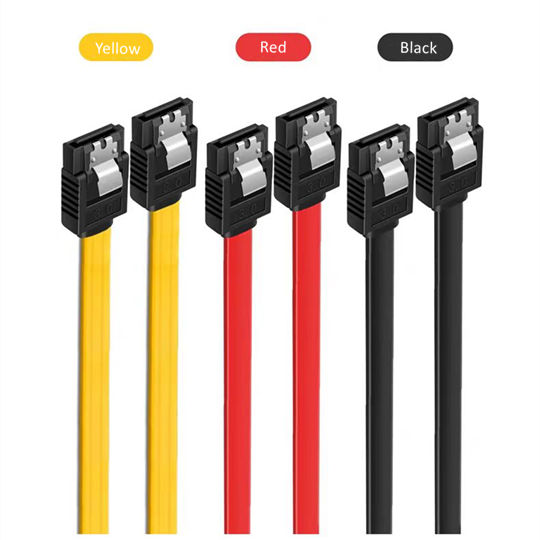

   • Locking Mechanism:​ A secure, positive-locking latch is a hallmark of a professional-grade cable. This small plastic clip snaps into a corresponding notch on the drive and motherboard SATA port, physically securing the connection. It prevents the cable from loosening due to vibration, accidental tugs, or gravitational sag in tower cases—a common root cause of intermittent “disappearing drive” errors and data corruption.
3. Length and Physical Form:
   • Length:​ The SATA specification strictly limits passive copper cable length to 1 meter (3.3 feet). For most ATX and micro-ATX cases, a length of 30-50cm is ideal, minimizing signal attenuation (loss over distance) and reducing cable clutter. For bulk OEM/ODM projects, a direct factory partnership enables procurement of custom-length cables that perfectly match your chassis design, eliminating excess cable and optimizing airflow.
   • Form Factor: While round cables are robust, flat SATA cables offer superior flexibility for routing in extremely tight spaces, behind motherboard trays, or under GPUs, further aiding in achieving a clean, thermally efficient build.

Part 3: Application-Specific Selection Guide

• For Enthusiast Gaming Rigs & High-Performance Workstations:​ Prioritize a certified SATA 6Gb/s Cable​ with a locking latch. A right-angle connector is highly recommended to navigate cramped quarters around graphics cards and CPU coolers. The focus is on maximizing SSD performance and ensuring absolute stability during overclocking or prolonged rendering sessions.
• For Data Center Servers, NAS, and Storage Arrays:​ Reliability and consistency are paramount. Use locked, heavily shielded cables across all drives. Right-angle connectors are mandatory for high-density hot-swap backplanes. Here, the decision extends beyond a single cable; it becomes a bulk procurement strategy. Sourcing thousands of identical, high-quality cables from a single manufacturer​ ensures uniform performance, simplifies troubleshooting, and streamlines inventory management.
• For System Integration & Industrial Computing:​ The needs are highly specialized. Vibration resistance, extended temperature tolerance, and custom form factors are common requirements. This is where the true value of a manufacturer​ partnership shines. Whether it’s a SATA Adapter with a custom mounting bracket, cables with industrial-grade jacketing, or specific SATA Power Cable harnesses, the ability to provide OEM/ODM Services is critical. Bespokecable routinely collaborates on such projects, embedding connectivity into everything from digital signage and kiosks to automated test equipment.

Part 4: The Strategic Imperative of Sourcing from a Certified Manufacturer

For professionals responsible for outcomes, where you buy​ components is a strategic decision that impacts cost, risk, and operational efficiency.

• Guaranteed Quality and Traceable Compliance:​ As a direct factory, we enforce stringent control over our entire production process, from raw material sourcing (high-purity copper, quality PVC) to final testing. Every SATA Data Cable​ is validated to meet SATA-IO, CE, and RoHS standards. Our in-house testing includes bit-error-rate checks at 6Gbps, shielding-effectiveness tests, and connector-durability cycling. This rigorous process eliminates the “lottery” associated with generic cables found in a sale​ bin, providing guaranteed performance and significantly reducing the risk of field failures that lead to costly downtime and warranty claims.
• Unmatched Economies of Scale for Volume Procurement:​ By engaging in wholesale​ and bulk​ purchasing directly with the manufacturer, you remove layers of distribution markup. This translates to substantial cost savings on large-scale deployments, such as equipping a new data center hall or fulfilling a quarterly production run for a PC model. The value proposition is clear: enterprise-grade reliability at scalable, competitive pricing.
• The Power of Customization (OEM/ODM):​ Off-the-shelf solutions often require compromise. Do you need a specific right-angle SATA Cable​ in your company’s branding colors? A SATA Power Cable​ with a unique wire sequence for a proprietary backplane? An SATA Extension Cable​ of a precise, non-standard length? Our OEM/ODM services​ are designed to translate your unique requirements into a tangible product. We collaborate on every detail, from connector angle and cable length to jacket color and packaging, ensuring the final product is not just a component, but a seamless extension of your own design.
• Supply Chain Resilience and Technical Partnership:​ Partnering with a manufacturer​ establishes a direct, accountable link in your supply chain. It provides visibility and stability. Beyond logistics, it grants you access to engineering expertise. Our team can provide compatibility consultations for complex scenarios, advise on signal integrity for long runs, or help design a custom SATA to SATA Cable​ solution for a unique challenge, transforming a transactional purchase​ into a valuable technical partnership.

Conclusion: Building the Invisible Foundation for Digital Performance

The selection of a SATA cable is a fundamental engineering decision with far-reaching implications. It is the invisible foundation upon which data accessibility and system stability rest. This choice requires a meticulous alignment of technical specifications—generation, shielding, connector type, and length—with the application’s physical and operational demands.

By applying the principles outlined in this guide and, crucially, by partnering with a certified manufacturer that blends rigorous engineering with scalable production capability, you do more than just buy​ a cable. You invest in a reliable, high-performance substrate for your entire storage ecosystem. You mitigate risk, optimize total cost of ownership, and build systems that are inherently more stable and trustworthy. For IT leaders, system builders, and product developers, this is not a minor detail; it is a cornerstone of professional practice.

Are you ready to specify the optimal SATA connectivity solution for your next critical project? Contact the connectivity experts at Bespokecable today. Let us provide a comprehensive technical consultation, supply certified samples for your evaluation, and deliver a competitive, volume-based quote that brings reliability, performance, and value to your global operations.
